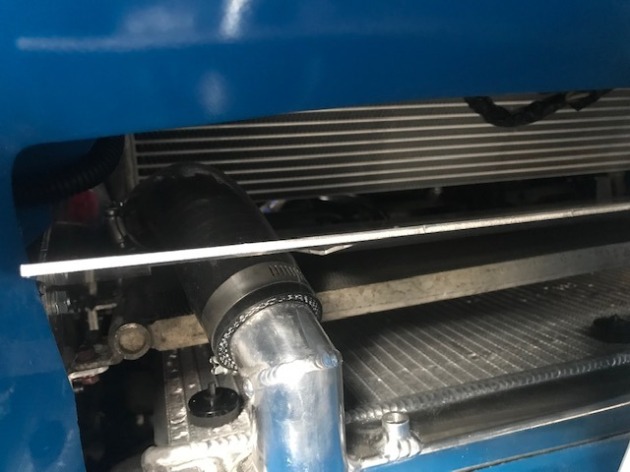

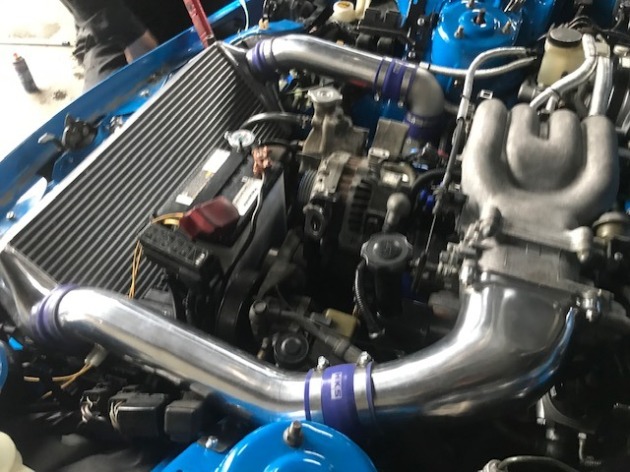

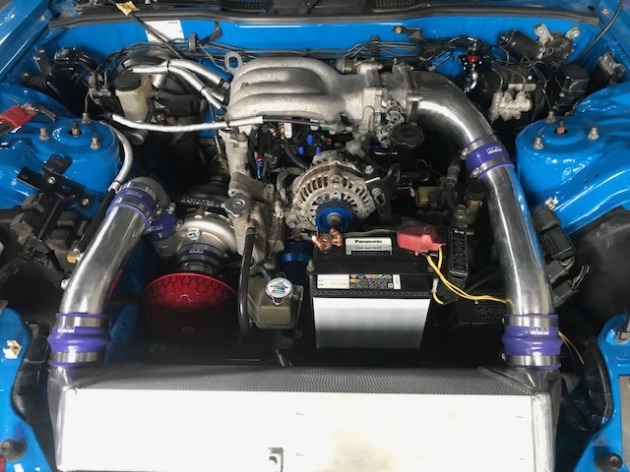

FD3S HKS Vシステム インタークーラーキット取り付け!

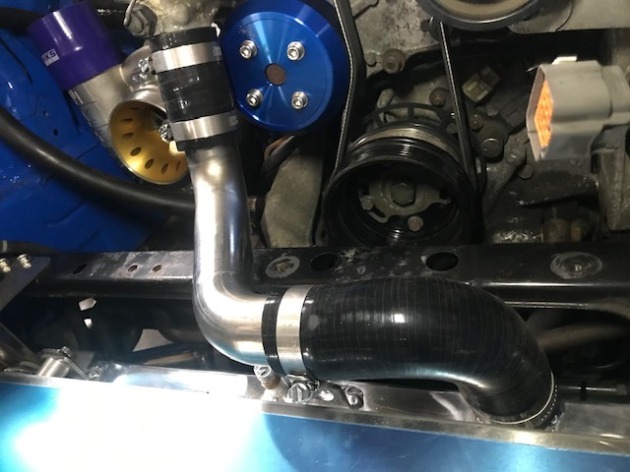

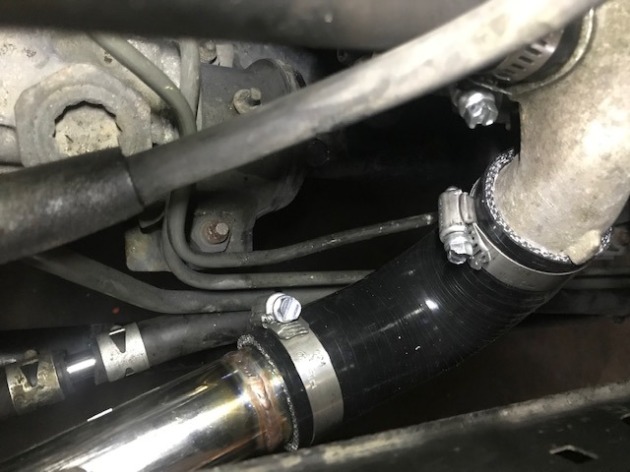

ラジエターホースは純正を刻んで使用する事になっていますが、いまいちフィッティングが悪く見た目も悪いので、シリコンホースのエルボを使用しました。

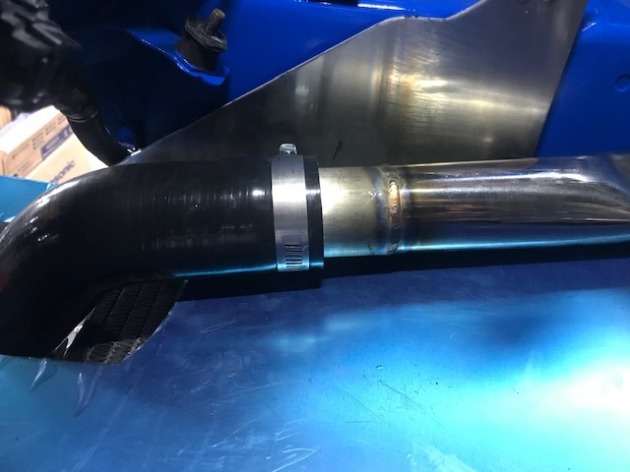

キットのステンレスパイプも長さが合わないので加工して取り付けました。


ラジエターはトラストTW-Rを使用しました。

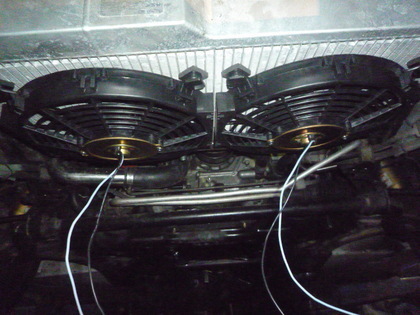

純正の電動ファンだとアンダースイープが取り付け出来ない為、スパム製薄型電動ファンに交換しました。

HKS製のVマウントキットは純正のラジエターを使用する前提ですが、社外のラジエターに交換した場合、車高の低い車輌やアンダーパネル付きの車輛は電動ファンが干渉してしまいます。
そこで薄い電動ファンを2基がけで装着すると地面とのクリアランスを確保出来ます。
