バックホウ用社外フロントアイドラーの日立建機対応機種/型式一覧

2022年11月8日

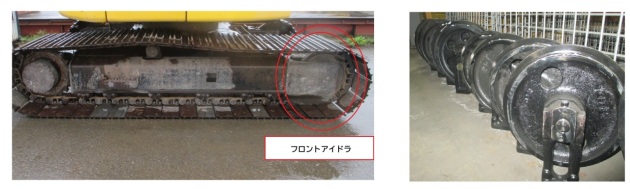

バックホウ用として販売している社外フロントアイドラー「日立建機の対応機種」を、型式別に一覧でご紹介いたします。





●フロントアイドラー【日立建機 対応機種(型式)一覧】

 <表記内容>「型式-枝番 SER:製造番号」
(鉄) → 鉄キャタ用
(ゴム) → ゴムクローラー用
(共通) → 鉄キャタ/ゴムクローラー共用

UH025-7 SER:104-3001- (鉄)

UH035-7 SER:119-0501- (鉄)

UH04-7 SER:12A-15001- (鉄)

UH045-7 SER:154-6001- (鉄)

UH055-7 SER:130-0101- (鉄)

UH07-7 SER:164-2001- (鉄)

UH09-7 SER:152-3001- (鉄)

UH10-7 SER:3001- (鉄) / UH12-7 SER:0101- (鉄)

EX7 (ゴム)

EX8-1 SER:1A3-000101- (ゴム) / EX8-2 SER:1A1-001729- (ゴム) / EX8-2B SER:1AG-003001- (ゴム)

EX10U SER:1AK- (ゴム) / EX10U-1 / EX10U-3

EX12-1 SER:1A5-000101- (共通) / EX12-2 SER:1A5-002001- (共通)

EX14

EX15-1 SER:1A7-000101- (共通) / EX15-2 SER:1A7-001501- (共通) / EX15U SER:1BL-000101- / EX15U-1B / EX15U-3 / EX15UR

EX17U SER:1LF-000101-

EX18-2 SER:1AW-000101-

EX20 / EX20U SER:1AN-000101- (共通) / EX20UD (共通) / EX20U-3 SER:1L7-000101- (共通) / EX20UR-1 SER:1A9-000101- (共通) / EX20UR-2 SER:1BK-001001- (共通) / EX20UR-2C SER:1A2-002001- (共通) / EX20UR-3 SER:1L8-005001- (共通)

EX21

EX22-1 SER:1AA-000101- (共通) / EX22-2 SER:1AL-002001- (共通)

EX24

EX25-1 SER:1AB-000101- (共通) / EX25-2 SER:1AP-001501- (共通)

EX26 (ゴム) / EX26 (鉄)

EX27 SER:19R-000101- (鉄) / EX27 SER:19R-000101- (ゴム) / EX27U SER:1AR-000101- (共通)

EX30 SER:19S-000101- (ゴム) / EX30 SER:19S-000101- (鉄) / EX30-1 SER:1AC-000101- (共通) / EX30-2 SER:1AE-003501- (共通) / EX30U SER:1AS-000101- (共通) / EX30UR-1 SER:1B2-000101- (共通) / EX30UR-2 SER:1B3-000151- (共通) / EX30UR-2C SER:1B0-005001- (共通) / EX30UR-3 SER:1BR-010001- (共通) / EX30URG-1 / EX30URG-2C

EX33 / EX33U SER:1BN-00101- (共通) / EX33MU SER:1BM-00101- (共通)

EX35-1 SER:1AF-000101- (共通) / EX35-1 SER:1B4-000101- (共通) / EX35-2 SER:1B5-002001- (共通) / EX35U SER:1AU-00101- (共通)

EX40 SER:19V-00001- (鉄) / EX40 SER:19V-00001- (ゴム) / EX40-1 SER:1B7-000101- (共通) / EX40-2 SER:1B8-003501- (共通) / EX40U-1 SER:1B6-000101- (共通) / EX40UR-1 SER:1BA-000101- (共通) / EX40UR-2 SER:1BB-001001- (共通) / EX40UR-2C SER:1BC-005001- (共通) / EX40UR-3 SER:1L2-010001- (共通)

EX45-1 SER:1BD-000101- (共通) / EX45-2 SER:1BE-001001- (共通)

EX50U SER:1AV-000101- (共通) / EX50UR SER:10E-000101- (共通) / EX50URG SER:10E- (共通)

EX55 / EX55UR SER:1BG-000101- (共通) / EX55UR-3 SER:1BH-005001- (共通)

EX58MU SER:1BP-000101- (共通)

EX60-1 SER:107-10001- (共通) / EX60-2 SER:10K-30001- (共通) / EX60-3 SER:10S-40001- (共通) / EX60-5 SER:1C1-050001- (共通) / EX60SR SER:109-000501- (共通) / EX60UR SER:10C-001001- (共通) / EX60URG SER:10C-001001- (共通)

EX70LCK-5 SER:1C1-050001- (共通)

EX75UR-1 SER:10L-005001- (共通) / EX75UR-3 SER:10V-010001- (共通) / EX75UR-5 SER:1C9-020001- (共通) / EX75USRLC-3 SER:1C7-010001- (共通) / EX75US-5 SER:1CA-020001- (共通)

EX80U SER:1C6-010001- (鉄)

EX90-1 SER:11C-01001- (鉄) / EX90L-5 SER: (鉄)

EX100-1 SER:12E-020001- (鉄) / EX100-2 SER:12L-030001- (鉄) / EX100-3 SER:12S-035001- (鉄) / EX100-5 SER:1E3-001001- (鉄) / EX100-5 SER:1E3-001001- (ゴム) / EX100M-1 SER:12G-002001- (鉄) / EX100M-2 SER:12M-003001- (鉄) / EX100M-3 SER:12U-003501- (鉄) / EX100M-5 SER:1E3-001001- (鉄)

EX120-1 SER:12H-015001- (鉄) / EX120-2 SER:12N-030001- (鉄) / EX120-3 SER:12V-040001- (鉄) / EX120-5 SER:1E4-/1E8-01001- (鉄) / EX120-5 SER:1E4-/1E8-01001- (ゴム)

EX130K-5 SER:1E4-001001- (鉄) / EX130K-5 SER:1E4-001001- (ゴム)

EX135UR SER:1ED-001001- (鉄) / EX135UR SER:1ED-001001- (ゴム) / EX135UR-5 SER:1EU-003001- (鉄) / EX135US-5 SER:1EU-003001- (鉄) / EX135USR SER:1EN-001001- (鉄)

EX140US-5 SER:1EU-003001- (鉄)

EX150-1 SER:133-01001- (鉄) / EX150LC-5 SER:13K-001002- (鉄)

EX160LC-5 SER:13K-001002- (鉄)

EX200-1 SER:145-30001- (鉄) / EX200LC-1 SER:145-30001- (鉄) / EX200-2 SER:147-60001- (鉄) / EX200LC-2 SER:147-60001- (鉄) / EX200-3 SER:14C-78001- (鉄) / EX200LC-3 SER:14C-78001- (鉄) / EX200-5 SER:14H-01001- (鉄) / EX200LC-5 SER:14H-01001- (鉄)

EX220-1 SER:153-05001- (鉄) / EX220-2 SER:15B-05001- (鉄) / EX220-3 SER:15D-010001- (鉄) / EX220-5 SER:15H-001001- (鉄)

EX225USR SER:14W-010001- (鉄) / EX225USRK SER:14W-010001- (鉄) / EX225USRLC SER:14W-010001- (鉄) / EX225USRLCK SER:14W-010001- (鉄) / EX225USR SER:14W-010001- (鉄)

EX230H-5 SER:15H-001001- (鉄) / EX230K-5 SER:15H-001001- (鉄) / EX230LC-5 SER:15S-001001- (鉄) / EX230LCH-5 SER:15H-001001- (鉄)

EX270-1 SER:158-05001- (鉄) / EX270LC-1 SER:158-05001- (鉄) / EX270-5 SER:15J-10001- (鉄) / EX270LC-5 SER:15J-10001- (鉄)

EX300-1 SER:159-02001- (鉄) / EX300LC-1 SER:159-02001- (鉄) / EX300-2 SER:15K-005001- (鉄) / EX300LC-2 SER:15K-005001- (鉄) / EX300LCH-2 SER:15K-005001- (鉄) / EX300-3 SER:15L-007001- (鉄) / EX300-3C SER:15M-010001- (鉄) / EX300LC-3 SER:15L-007001- (鉄) / EX300LCH-3 SER:15L-007001- (鉄) / EX300-5 SER:1H1-020001- (鉄) / EX300-5 SER:1H1-020001- (鉄) / EX300LC-5 SER:1H1-020001- (鉄) / EX300LC-5 SER:1H1-020001- (鉄)

EX310H-3 SER:15M-010001- (鉄) / EX310LCH-3 SER:15M-010001- (鉄)

EX345USR SER:1HB-010001- (鉄) / EX345USR SER:1HB-010001- (鉄) / EX345USR SER:1HB-010001- (鉄)

EX350H-5 SER:1H1-020001- (鉄) / EX350H-5 SER:1H1-020001- (鉄) / EX350LCH-5 SER:1H1-020001- (鉄) / EX350LCH-5 SER:1H1-020001- (鉄) / EX350K-5 SER:1H1-020001- (鉄) / EX350K-5 SER:1H1-020001- (鉄) / EX350LCK-5 SER:1H1-020001- (鉄) / EX350LCK-5 SER:1H1-020001- (鉄)

EX370-5 SER:1H1-080001- (鉄) / EX370-5 SER:1H1-080001- (鉄) / EX370HD-5 SER:1H1-020001- (鉄) / EX370HD-5 SER:1H1-020001- (鉄)

EX385USR SER:1HB-010001- (鉄) / EX385USR SER:1HB-010001- (鉄) / EX385USRLC SER:1HB-010001- (鉄) / EX385USRLC SER:1HB-010001- (鉄)

EX400-1 SER:164-02001- (鉄) / EX400LC-1 SER:164-02001- (鉄) / EX400LCH-1 SER:164-02001- (鉄) / EX400-3 SER:166-005001- (鉄) / EX400LC-3 SER:166-005001- (鉄) / EX400-3C SER:16A-006001- (鉄) / EX400LC-3C SER:16A-006001- (鉄) / EX400-5 SER:16C-007001- (鉄) / EX400LC-5 SER:16C-007001- (鉄)

EX450-5 SER:16E- (鉄) / EX450H-5 SER:16C-007001- (鉄) / EX450LCH-5 SER: (鉄)

EX550-3 01001- (鉄) / EX550LC-3 SER:01001- (鉄)

EX600H-3 (鉄) / EX600H-5 (鉄)

EX700-1 SER:172-001003- (鉄) / EX700H (鉄)

EX750-5 (鉄)

EX800-5 (鉄) / EX800H-5 (鉄)

EX1100-1 (鉄)

EX1800-1 (鉄) / EX1800-2 (鉄) / EX1800-3 (鉄)

EX3500-1 (鉄) / EX3500-2 (鉄) / EX3500-3 (鉄)

ZX8-2 SER:1MR-030001- (ゴム)

ZX10U-2 SER:1MP-000101- (共通)

ZX14-3 SER:1NC-002001- (共通)

ZX15UR SER:1MV- (ゴム) / ZX15UR SER:1MV- (共通)

ZX17U-2 SER:1MS-010001-

ZX20U SER:1MY-010397- (共通) / ZX20U-5A / ZX20UR SER:1MU-010001- (共通)

ZX22U-2 SER:1MW-010001- (共通)

ZX27U SER:1LA-005001- (共通) / ZX27U-2 SER:1MJ-010001- (共通) / ZX27U-3 SER:1ND-020001- (共通)

ZX30U-1 SER:1LB-05001-07000 (共通) / ZX30U-1 SER:1LB-07001- (共通) / ZX30U-A (共通) / ZX30U-2 SER:1M7-010001- (共通) / ZX30U-3 SER:1NE-020001- (共通) / ZX30U-5B SER:030001- (共通) / ZX30UR-1 SER:1LH-020001- (共通) / ZX30UR-2 SER:1MF-030001- (共通) / ZX30UR-3 SER:1YE-035001- (共通) / ZX30UR-5B SER:050001- (共通)

ZX35U-1 SER:1LC-05001-07000 (共通)ZX35U-1 SER:1LC-07001- (共通) / ZX35U-2 SER:1M8-010001- (共通) / ZX35U-3 SER:1NF-020001-020261 (共通) / ZX35U-3 SER:1NF-020262- (共通) / ZX35U-5B SER:050001- (共通)

ZX40U-1 SER:1LD-005001-007000 (共通) / ZX40U-1 SER:1LD-007001- (共通) / ZX40U-2 SER:1M9-010001- (共通) / ZX40U-3 SER:1NG-020001-020309 (共通) / ZX40U-3 SER:1NG-020310- (共通) / ZX40U-5A SER:030001- (共通) / ZX40U-5B SER:030001- (共通) / ZX40UR-1 SER:1LJ-020001- (共通) / ZX40UR-2 SER:1MG-030001-030333 (共通) / ZX40UR-2 SER:1MG-030334- (共通) / ZX40UR-3 SER:1YF-035001- (共通) / ZX40UR-5B

ZX50U-1 SER:1LE-005001-007000 (共通) / ZX50U-1 SER:1LE-007001- (共通) / ZX50U-2 SER:1MA-010001- (共通) / ZX50U-3 SER:1NH-020001- (共通) / ZX50U-5B SER:050001- (共通) / ZX50U-5A SER:050001- (共通)

ZX55UR-1 SER:1LG-010001- (共通) / ZX55UR-2 SER:1MH-030001- (共通) / ZX55UR-3 SER:1YG-035001- (共通) / ZX55UR-5B

ZX70-1 SER:1CD-060001- (共通) / ZX70LC-1 SER:1CD-060001- (共通) / ZX70-3 SER:1P1-080001- (共通) / ZX70LC-3 SER:1P1-080001- (共通)

ZX75UR-1 SER:1CF-040001- (共通) / ZX75UR-3 SER:1P6-050001- (共通) / ZX75UR-5B / ZX75US-1 SER:1CC-030001- (共通) / ZX75US-3 SER:1P3-060001- (共通) / ZX75US-5B / ZX75US-A SER:1CG-040001- (共通)

ZX80 SER:1CD-060001- (共通) / ZX80LCK SER:1CD-060001- (共通) / ZX80LCK-3 SER:1P1-080001- (共通)

ZX110-1 SER:1EY-010001- (鉄) / ZX110-3 SER:1R7-020001- (鉄) / ZX110M-1 SER:1EY-010001- (鉄) / ZX110M-3 SER:1R7-020001- (鉄)

ZX120-1 SER:1S1-060001- (鉄) / ZX120-3 SER:1R1-080001- (鉄) / ZX120-5B 鉄

ZX125US-1 SER:1SE-010001- (鉄)

ZX130H SER:1SE-010001- (鉄) / ZX130K SER:1S1-060001- (鉄)

ZX135UR SER:1SM-005001- (鉄) / ZX135US SER:1SC-060001- (鉄) / ZX135USBL SER:1SC-060001- (鉄) / ZX135USK SER:1SC-060001- (鉄) / ZX135US-3 SER:1R4-080001- (鉄) / ZX135US-5B (鉄) / ZX135USK SER:1SC-060001- (鉄) / ZX135UST SER:1SS-060001- (鉄) / ZX135USL-1 SER:1SH-060001- (鉄) / ZX135USL-3 (鉄)

ZX160LC-1 SER:1F1-005001- (鉄) / ZX160LC-3 SER:1T1-010001- (鉄) / ZX160LC-5B (鉄)

ZX165D (鉄)

ZX180LC SER:1F5-005001- (鉄) / ZX180LC SER:1F5-005001- (鉄) / ZX180LC-3 SER:1T2-010001- (鉄)

ZX185USR SER:1F7-005001- (鉄)

ZX195D (鉄) / ZX195D SER:1G6-100001- (鉄)

ZX200LC-1 SER:1G6-100001- (鉄) / ZX200-3 SER:1U1-200001-221519 (鉄) / ZX200-3 SER:1U1-221520- (鉄) / ZX200LC-3 SER:1U1-200001-221519 (鉄) / ZX200LC-3 SER:1U1-221520- (鉄) / ZX200-5B (鉄) / ZX200LC-5B (鉄)

ZX210LC-1 SER:100001- (鉄) / ZX210LC-3 SER:1U9-200001- (鉄) / ZX210H-3 SER:1U1-200001-221519 (鉄) / ZX210H-3 SER:1U1-221520- (鉄) / ZX210LCH-3 SER:1U1-200001-221519 (鉄) / ZX210LCH-3 SER:1U1-221520- (鉄) / ZX210H-5B (鉄) / ZX210LCH-5B (鉄) / ZX210K SER:1G6-100001- (鉄) / ZX210LCK SER:100001- (鉄) / ZX210K-3 SER:1U3-200001-221519 (鉄) / ZX210K-3 SER:1U3-221520- (鉄) / ZX210LCK-3 SER:1U3-200001-221519 (鉄) / ZX210LCK-3 SER:1U3-221520- (鉄) / ZX210LCK-5B (鉄)

ZX225US-1 SER:1GF-100001- (鉄) / ZX225USR SER:1GD-100001- (鉄) / ZX225USRK SER:1GD-100001- (鉄) / ZX225USRLCK (鉄) / ZX225US-3 SER:1U4-200001- (鉄) / ZX225USLC-3 SER:1UA-200001- (鉄) / ZX225USR-3 SER:1U5-200001- (鉄) / ZX225USRLCK-3 (鉄)

ZX230-1 SER:1HD-010001- (鉄) / ZX230LC SER:1HD-010001- (鉄)

ZX240-1 SER:100001- (鉄) / ZX240LC SER:100001- (鉄) / ZX240-3 SER:1V1-020001- (鉄) / ZX240LC-3 SER:1V1-020001- (鉄) / ZX240K SER:010001- (鉄) / ZX240-5B (鉄)

ZX250H-3 SER:1V1-020001- (鉄) / ZX250LCH-3 SER:1V1-020001- (鉄) / ZX250K-3 SER:1V1-020001- (鉄) / ZX250LCK-3 SER:1V1-020001- (鉄)

ZX270-1 SER:1HG-020001- (鉄) / ZX270-3 SER:1V4-030001- (鉄) / ZX270LC-3 SER:1V4-030001- (鉄)

ZX280LC-3 SER:1V4-030001- (鉄) / ZX280-5B (鉄)

ZX330-1 SER:1HH-030001- (鉄) / ZX330LC SER:1HH-030001- (鉄) / ZX330-3 (鉄) / ZX330LC-3 (鉄) / ZX330-5B SER:DDD-070001- (鉄)

ZX350H SER:1HH-030001- (鉄) / ZX350LCH SER:1HH-030001- (鉄) / ZX350K SER:1HH-030001- (鉄) / ZX350LCK SER:1HH-030001- (鉄) / ZX350LC-3 SER:1V7-050001- (鉄) / ZX350K-3 SER:1V7-050001- (鉄) / ZX350LCK-3 SER:1V7-050001- (鉄) / ZX350H-3 SER:1V7-050001- (鉄) / ZX350LCH-3 SER:1V7-050001- (鉄) / ZX350-5B (鉄) / ZX350H-5B (鉄) / ZX350LCH-5B (鉄) / ZX350K-5B (鉄) / ZX350LCK-5B (鉄)

ZX370-1 SER:1HH-030001- (鉄) / ZX370MTH SER:1HH-030001- (鉄)

ZX380H SER:16H-001001- (鉄) / ZX400R-3 SER:1JK-001001- (鉄) / ZX400LCH-3 SER:1JK-001001- (鉄)

ZX450 SER:16J-010001- (鉄) / ZX450LC SER:16J-010001- (鉄) / ZX450H SER:16J-010001- (鉄) / ZX450LCH SER:16J-010001- (鉄) / ZX450MTH SER:16J-010001- (鉄) / ZX450MTH SER:16J-010001- (鉄) / ZX450-3 SER:1J1-020001- (鉄) / ZX450LC-3 SER:1J1-020001- (鉄)

ZX460LCH SER:16J-010001- (鉄)

ZX470H-3 SER:1J1-020001- (鉄) / ZX470LCH-3 SER:1J1-020001- (鉄) / ZX470R-3 SER:1J1-020001- (鉄) / ZX470LCR-3 SER:1J1-020001- (鉄) / ZX470-5B (鉄) / ZX470R-5B (鉄)

ZX480MTH SER:16J-010001- (鉄)

ZX500LC SER:16R-003001- (鉄) / ZX500LC-3 SER:1J1-020001- (鉄)

ZX520LC-3 SER:1J1-020001- (鉄) / ZX520LCH-3 SER:1J1-020001- (鉄) / ZX520LCR-3 SER:1J1-020001- (鉄) / ZX520LCH-5B (鉄)

ZX600 SER:17P-004001- (鉄) / ZX600LC SER:17P-004001-004289 (鉄) / ZX600LC SER:17P-004290- (鉄)

ZX650H SER:17P-004001- (鉄) / ZX650LCH SER:17P-004001-004289 (鉄) / ZX650LCH SER:17P-004290- (鉄) / ZX650LC-3 SER:1J7-020001- (鉄)

ZX670LCH-3 SER:1J7-020001- (鉄) / ZX670LCR-3 SER:1J7-020001- (鉄)

ZX800 SER:17V-006001- (鉄) / ZX800 SER:17V-006001- (鉄)

ZX850H SER:17V-006001- (鉄) / ZX850H SER:17V-006001- (鉄) / ZX850-3 SER:1JB-020001- (鉄) / ZX850LC-3 SER:1JB-020001- (鉄)

ZX870H-3 SER:1JB-020001- (鉄) / ZX870LCH-3 SER:1JB-020001- (鉄) / ZX870R-3 SER:1JB-020001- (鉄) / ZX870LCR-3 SER:1JB-020001- (鉄)

ZH200-A SER:DCA-010001- (鉄) / ZH200-5B
